Assembly Instructions Of Bedside Handrail GX-B202

Read the following instructions, and if they are not clear, consult a professional caregiver or technician. Before Assembly
Make sure all of the parts listed above are in the package. Check that nothing has been damaged immediately after you open the package. Contact Goxo Medical if you find damage.

Assembly Instructions

A. Support Frame (2)
B. Brace Bar
C. Base Frame
D. Legs (2)
E. Assist Bar
F. Storage Pouch
G. Strap
H. Adjustable Clips

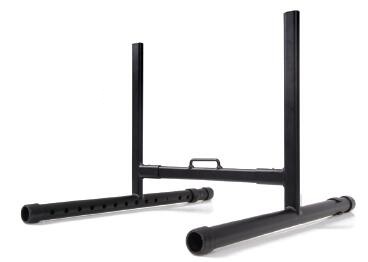

1. Start by installing the Support Frames (A) to the Brace Bar (B).

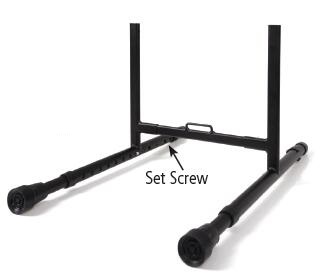

2. Locate the set screw on Support Frame (A) and install the Legs (D) to the opposite end of the Support Frame (A).

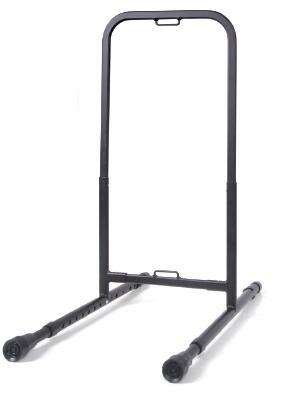

3. Install the Base Frame (C) to the Support Frame (A).

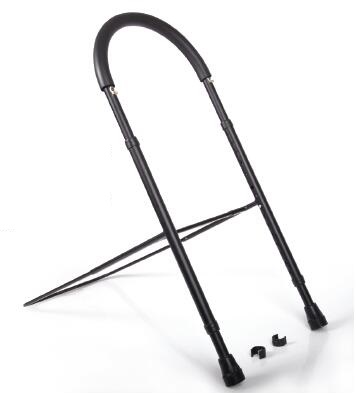

4. Flip the unit over onto the legs (D), remove the adjustment clips (H) and insert the Assist Bar (E) with the clips facing out,

so the storage pouch can hang off them.

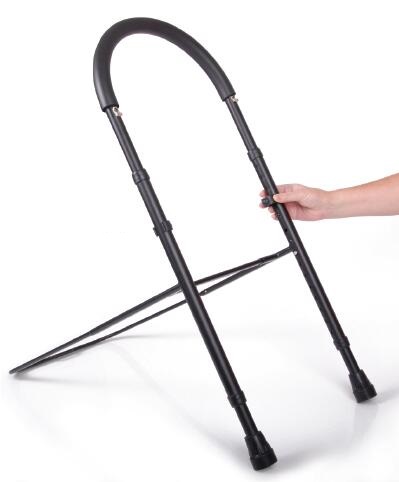

5. Position the Assist Bar (E) to the proper height and insert adjustment clips to hold the bar in place.

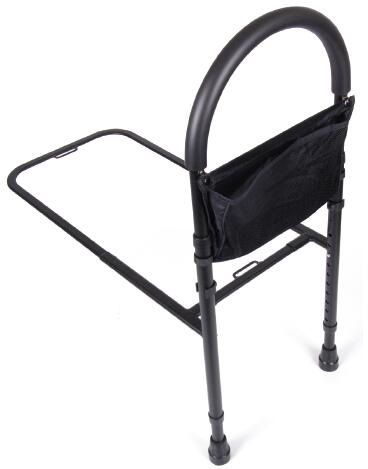

6. Clip on Storage Pouch.

Installing the Bed Handrail GX-B202
Place the assembled Bed Handrail GX-B202 at the preferred location on the bed.
Adjust the height of the legs so they will stand firmly on the floor yet fit the bed
frame properly. After achieving the proper height, thread the strap through the
two loops on the base frame.
Attach the strap around the opposite side of the bed frame and tighten it
securely. When used on king size beds, there might only be room to thread the
strap only into one loop.
Position the mattress on the bed. The top height of the Assist Handle may need
to be adjusted by using the push button.
Precautions
Assistance or supervision must be provided for those who are too weak or
uncoordinated.
Ensure that all push buttons are locked in place before each use. Also
check that legs are level and securely positioned on the floor.

Do not exceed the weight capacity of 250 lbs. The frame does not support the
total weight of the user; it serves only as a stability aid. Do not use the handle
for fall prevention. It will not prevent individuals from rolling off the bed.

Care
Use a mild cleaning product—no abrasive, scouring pads or solvents including
lacquer thinner, turpentine and acetone.
